1. Maintenance of equipment, low cost and low power consumption.
2. Imported fiber laser, stable performance,with a life of up to 100,000 hours.
3. High efficiency, quick cutting speed, high precision, small gap clearance.
4. Professional programmable CNC control system, stable and reliable, user-friendly operation.
5. High rigid gantry machine tool, imported high-end servo motor, the equipment is stable and reliable.
6. Special automatic feeding platform can be selected to save time and effort.
|
Machine Model
|
YN-3015/4020/6020DFP
|
|
Laser Power
|
500 - 4000W
|
|
Working area(mm)
|
3000X1500/4000X2000/6000X2000
|
|
X-Axis Route
|
3030/4030/6030mm
|
|
Y-Axis Route
|
1520/2020/2020mm
|
|
Z--Axis Route
|
240mm
|
|
X/Y-axis positioning accuracy
|
±0.03mm/n
|
|
Repeat positioning accuracy Of X/Y-axis
|
±0.02mm
|
|
Maximum positioning speed
|
169m/min
|
|
Maximum acceleration Of x/y-axis speed
|
1.5G
|
|
CNC system
|
PA8000/SIEMENS/FAGOR/FANUC/BECKHOFF
|
|
Maximum load Of the worktable
|
1600kg |

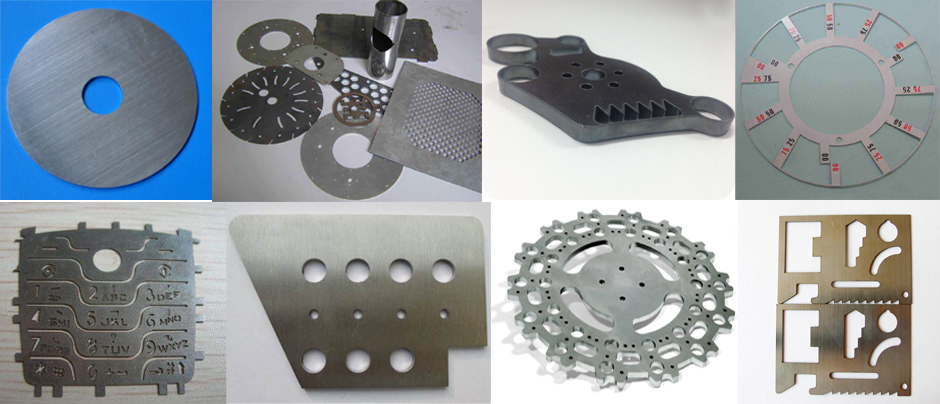

cut a variety of metal sheet, pipe material, mainly applicable to stainless steel, carbon steel, manganese steel,galvanized sheet, various alloy plates, rare metal materials such as quick cutting.
It is widely used in sheet metal processing, aviation, aerospace, electronics, electric appliances, subway accessories, automobile,food machinery, textile machinery, engineering machinery, precision matching.Parts, ships, metallurgical equipment, elevators, household appliances, process gifts, tools processing, decoration, advertising,metal processing, kitchen utensils processing and other manufacturing processing industry.
