1.Import original packaging fiber laser, good bean quality, stable performance, without reflection lens and light path adjustment, maintenance free essentially, 100,000 hours working time
2. High rigidity machine bed, adopts exclusive standard annealing processing with high-temperature NC electric resistance furnace, ensure long-time stable precision of the machine tool
3. High transformation efficiency of fiber laser, which up to 30%, saving the working power consumption by a large margin, achieves low operating costs
4. Adopts the imported original guide transmission and servo motors, high precision, high speed
5. Smooth cutting edge, little deformation
6. Low power consumption, energy saving, overall power consumption 1/3-1/5 of the same power YAG machines, 3 times sheet metal cutting speed
7. Laser generated without gas, air can be used to cut sheet metal.
|
MODEL |
YN-3015A |
|
WORKING AREA |
1500X3000mm |
|
LASER POWER |
300-1000w |
|
LASER WAVE LENGTH |
1070nm±10nm |
|
WORKING MATERIAL |
MEDIUM THICKNESS METAL SHEET |
|
CUTTING THICKNESS |
0.2-15mm |
|
CUTTING SPEED |
≤30m/min |
|
IDLE SPEED |
≤60m/min |
|
CONSUMPTION POWER |
≤10kw |
|
POSITIONING ACCURACY |
±0.05mm |
|
REPOSITION ACCURACY |
±0.03mm/min |
|
COOLING METHOD |
WATER COOLING |
|
VOLTAGE |
220V 50HZ, 1PH/380V 50HZ 3PH |

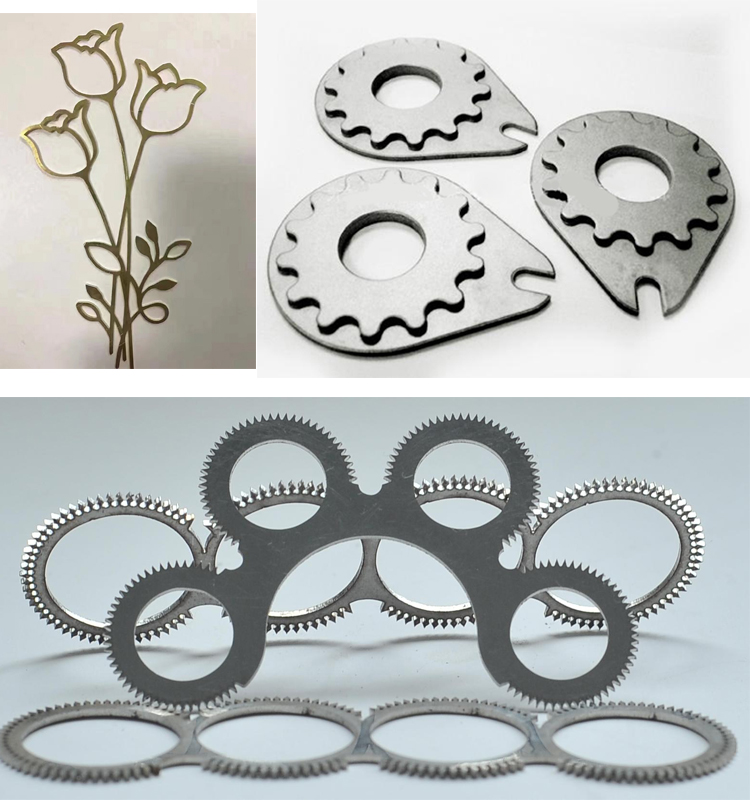

Specialized fast speed cutting of a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, steel, various alloy plate, rare metal and other materials.
Widely used in electrical power, automobile manufacturing, machinery and equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising signs, car decoration, sheet metal production, lighting hardware, display equipment, precision components, metal products and other industries.
