1. High strength machine tool has relieved the internal stress through
aging annealing treatment to ensure a long-termstability and accuracy.
2. Double Drive design, high precision rack gear and rail.
3. Movable Handle Control with convenient operation.
4. Receiving system is convenient for collecting the material.
5. Smooth and fine edge or surface and small distortion.
6. Dedicated software enables graphic or test to instantly designed or processed
|
|
YN-1530A |
|
Working area |
1500X3000mm |
|
Laser power |
500-1500W（Optional） |
|
Laser wavelength |
1070nm±10nm |
|
Applicable materials |
metal sheet |
|
Cutting speed |
<=30m/min |
|
Travel speed |
<=60m/min |
|
Thickness |
0.2-10mm |
|
Positioning accuracy |
±0.05mm |
|
Repeat positioning accuracy |
±0.03mm/min |
|
Cooling model |
Water-cooling |
|
Weight |
3500kg |

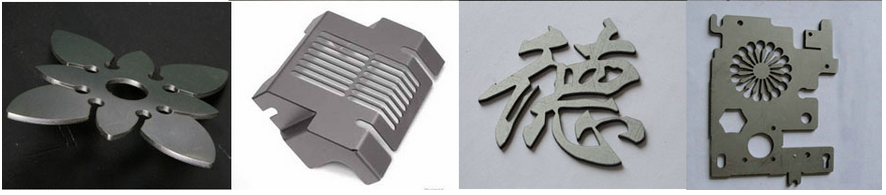

Applicable for high-speed cutting on various metal plates such as S/S, carbon steel, galvanized sheet, electrolytic plate,aluminum plate, steel, brass, alloy plate, rare metals and other materials.
Applied to medical microelectronics, spectacle frame, subway accessories, auto parts, mechanical parts, handicrafts, hardware tools, advertising and other industries.
