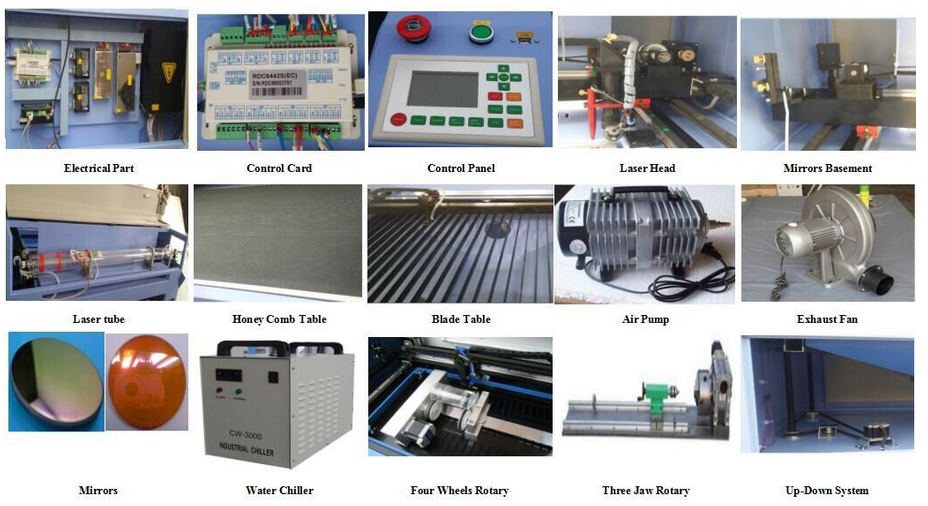

1. Working Area: this can be customized according to your requirements
2. RD control system:there has the USB interface in the control panel, do not need to connect into the computer, supporting offline work, very convenient
3. Knife worktable/Honeycomb worktable for your option -Knife worktable is better for hard materials such as wood,acrylic; Honeycomb worktable use for soft materials such as leather,fabric etc
4. High resolution laser head:good quality and long lifetime
5. Water pump/ Industrial chillier:used for cooling laser tube to protect it has long life.
6. Air pump/Compressor:cooling the laser head to avoid the materials being burned.
7. Exhaust fan: Blow away the smoke
|
Working area |
1300*900mm |
|
Laser power |
60W 80W 100W 130W 150W |
|
Laser type |
sealed CO2 laser tube,10.6μm |
|
Working platform |
honeycomb or blade |
|
Engraving speed |
0-60000mm/min |
|
Resolution rate |
±0.01mm |
|
Power Supply |
AC110V/220V±10%,50HZ/60HZ |
|
Supported Graphic Formats |
BMP,PLT,DST,AI,HPGL |
|
Cooling Mode |
Water cooling and protection system |
|
Control software |
RD Control System |
|
Driving system |
High-precision 3-phase stepper motor |
|
Compatible software |
Core Draw Auto CAD Photoshop |
|
Working temperature |
0~45℃ |
|
Working humidity |
5%~95% (without condensed water) |
|
Color Separation |
Yes |
|
Optional Configuration |
UP&down table,Rotary device, Auto focus device |
Available for engraving and cutting such nonmetal metal hard material as acrylic,color plates,ABS board,rubber,plastic,cloth toys,
leather,wool,crystal,glass,ceramic tile,jade,bamboo products,wood products. advertising and building decoration,packaging and printing,
paper products industries
Applied to cloth,leather,toys,computer embroidery cutting,mould,crafts,bamboo and wood.
